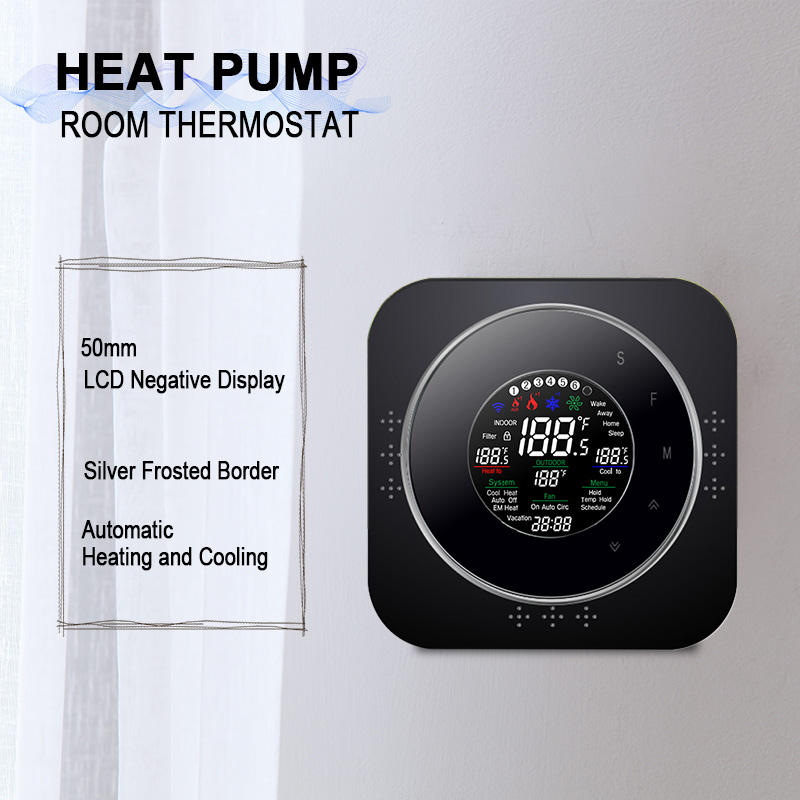

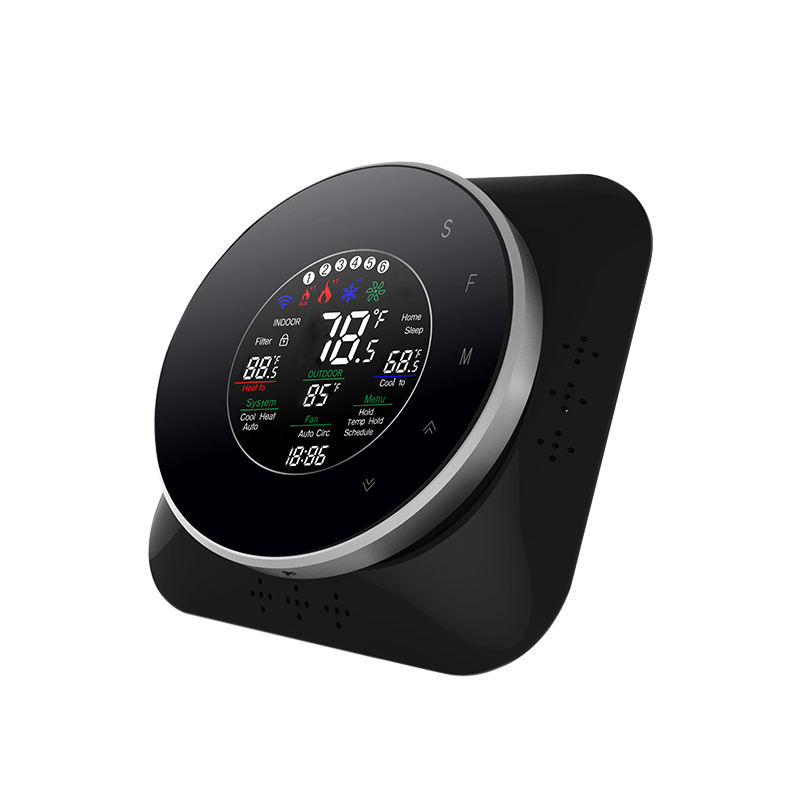

WiFi Smart Thermostat for 24VAC Absorption Heat Pumps with Pressure Control
A 24VAC-compatible WiFi thermostat designed for absorption heat pumps, featuring compressor pressure switch monitoring, control valve integration, and remote app management for optimized HVAC performance, The wifi thermostat could be controlled by Smart home devices such as Alexa, Echo, Google Home, IFTTT etc.
Get a Quote24VAC Absorbed Heat Carry Heat Pump WIFI THERMOSTAT for Compressor Pressure Switch Control Valve Smart WiFi Thermostat
1. Gas, oil, or electric heat with air conditioning.
2. Warm air, hot water, high efficiency furnaces, heat pumps, steam, gravity.
3. Heat only–including power to open and close zone valves, and normally open zone valves.
4. Heat only with fan.
5. Cool only.
|
Power Supply
|
AC/DC24V ±10%
|
|
Current Load
|
1A (Inductive) 3A (Resistance)
|
|
Sensor
|
NTC3950, 10K
|
|
Set Temp. Range
|
41-95 ℉ (5~35℃)
|
|
Accuracy
|
1 ℉ (0.5℃）
|
|
Display Temp. Range
|
41~95 ℉ (5~35℃)
|
|
Ambient Temp
|
32~113℉(0~45℃)
|
|
Ambient Humidity
|
5~95%RH(Non Condensing)
|
|
Storage Temp
|
23~113℉ (-5~45℃)
|
|
Timing Error
|
<1%
|
|
Power Consumption
|
<1.5W
|
|
Shell Material
|
PC+ABS(Fireproof)
|
|
Protection Class
|
IP20
|
|

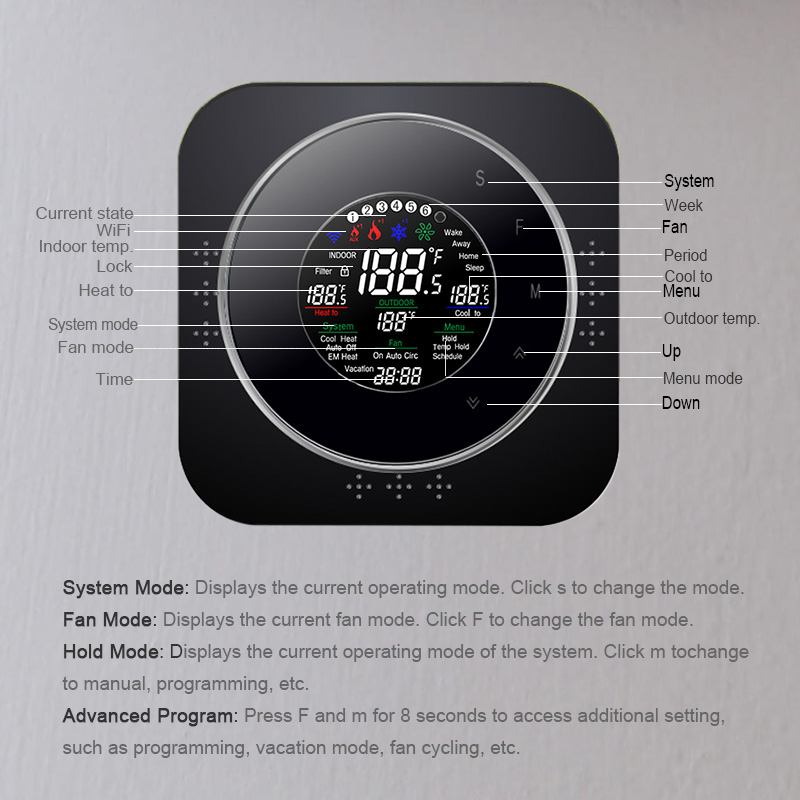

Buttons
|
Capactive Touch Buttons
|
|

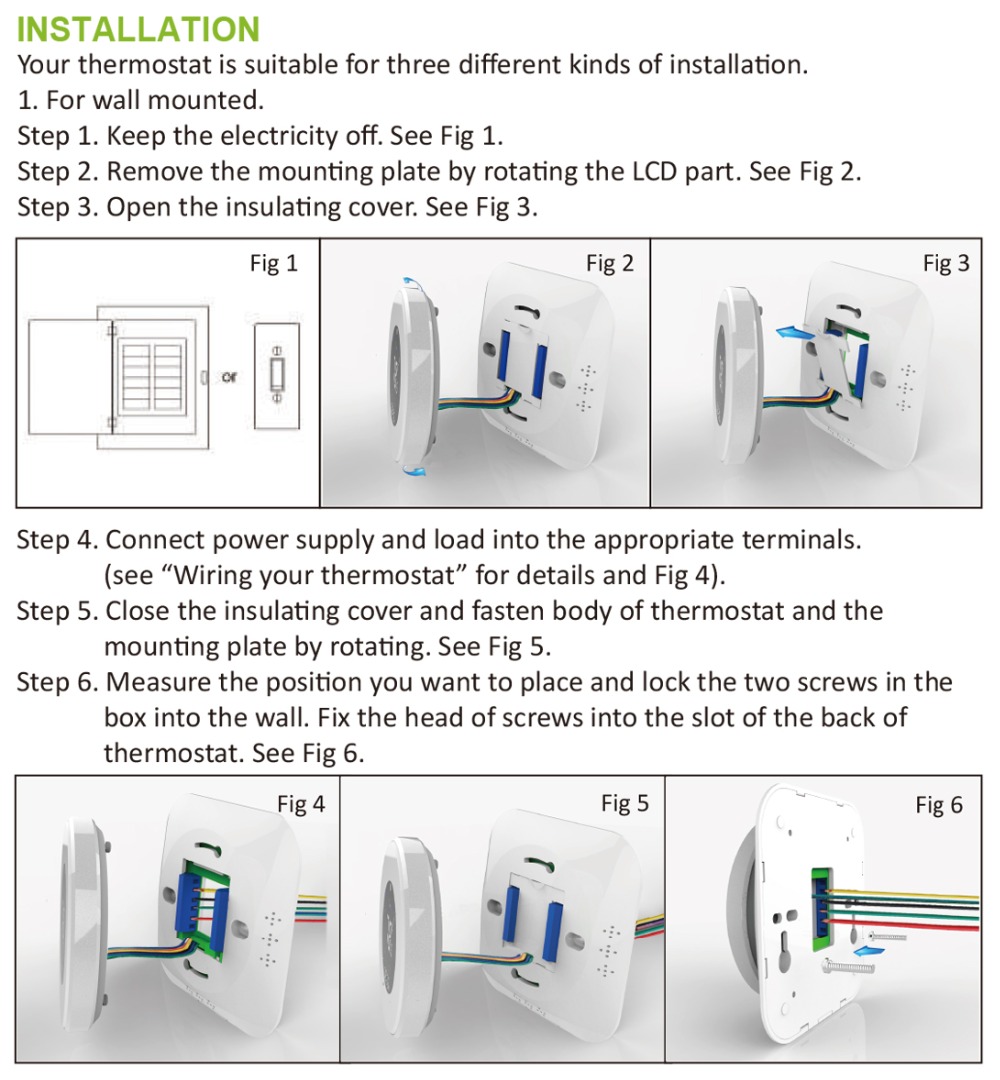

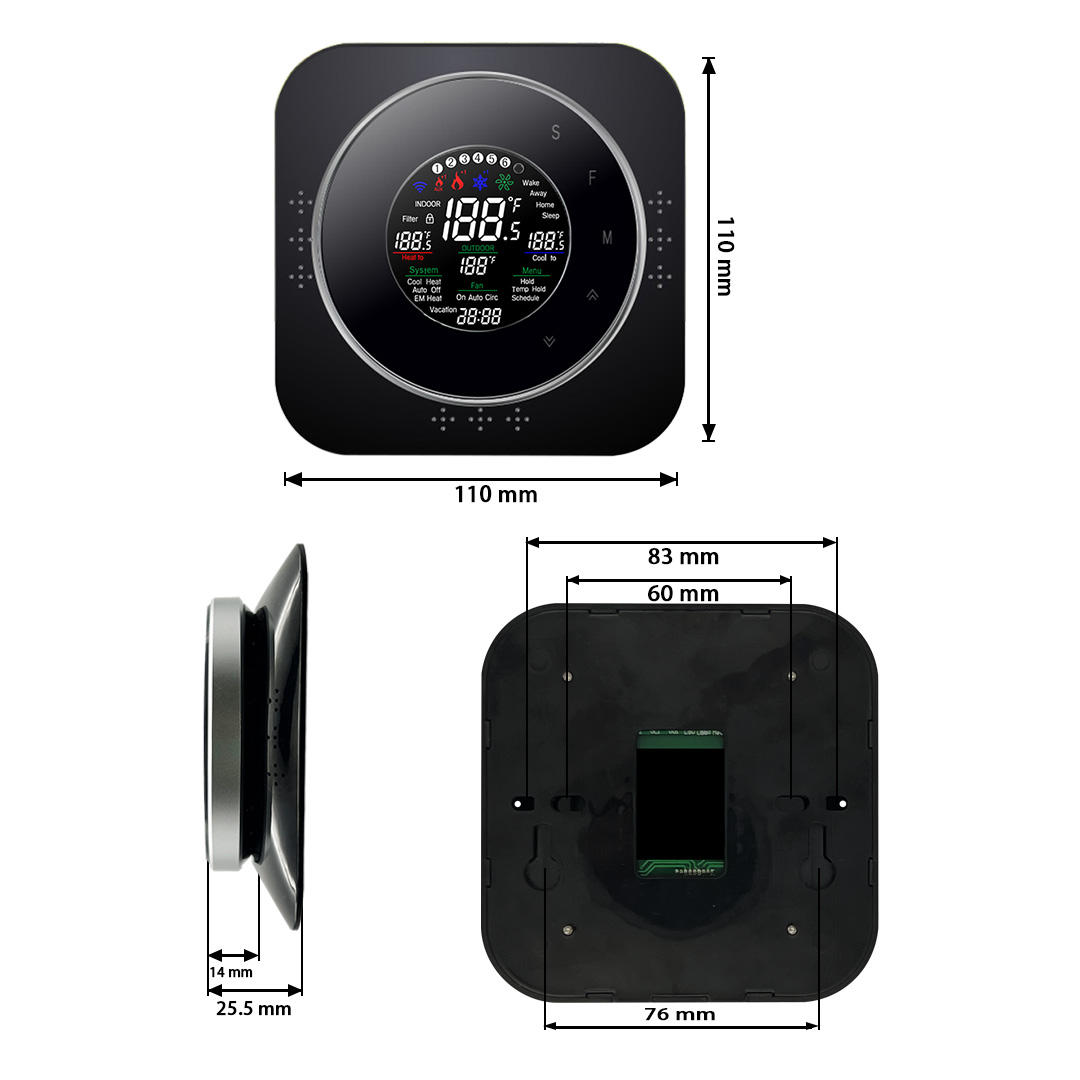

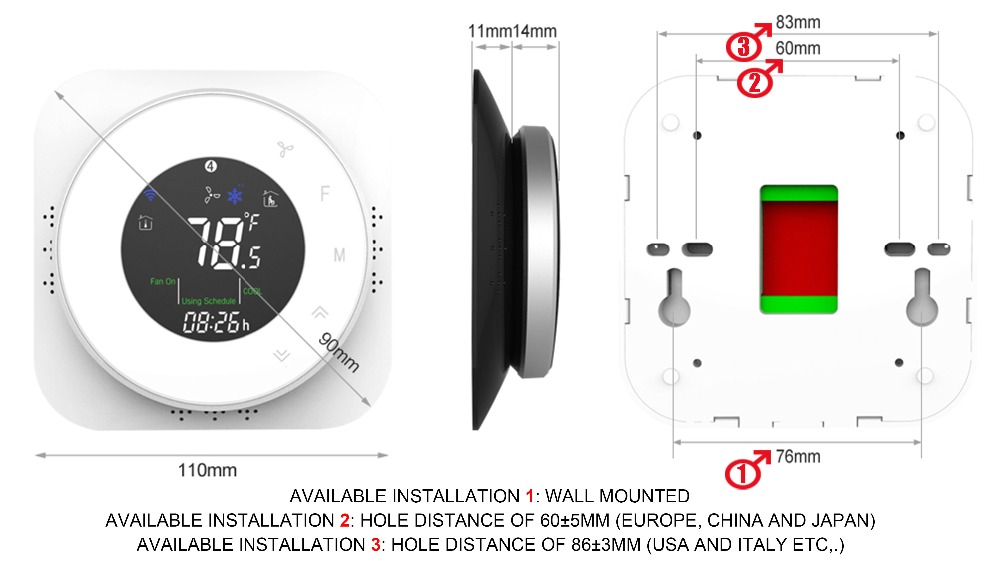

Available Installation 1
|
Wall mounted
|
|
Available Installation 2
|

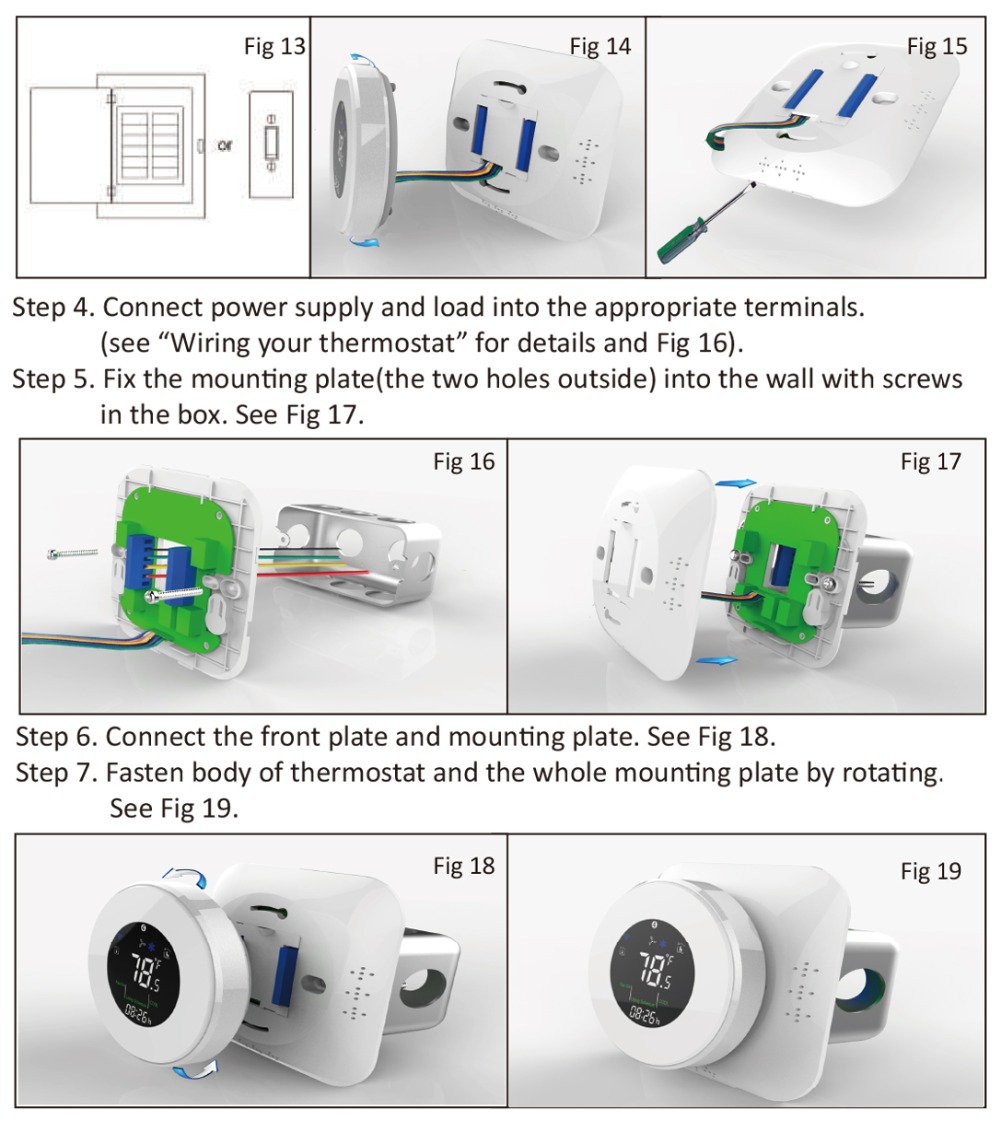

Hole Distance of 62±5mm (Europe, China and Japan)
|
|
Available Installation 3
|

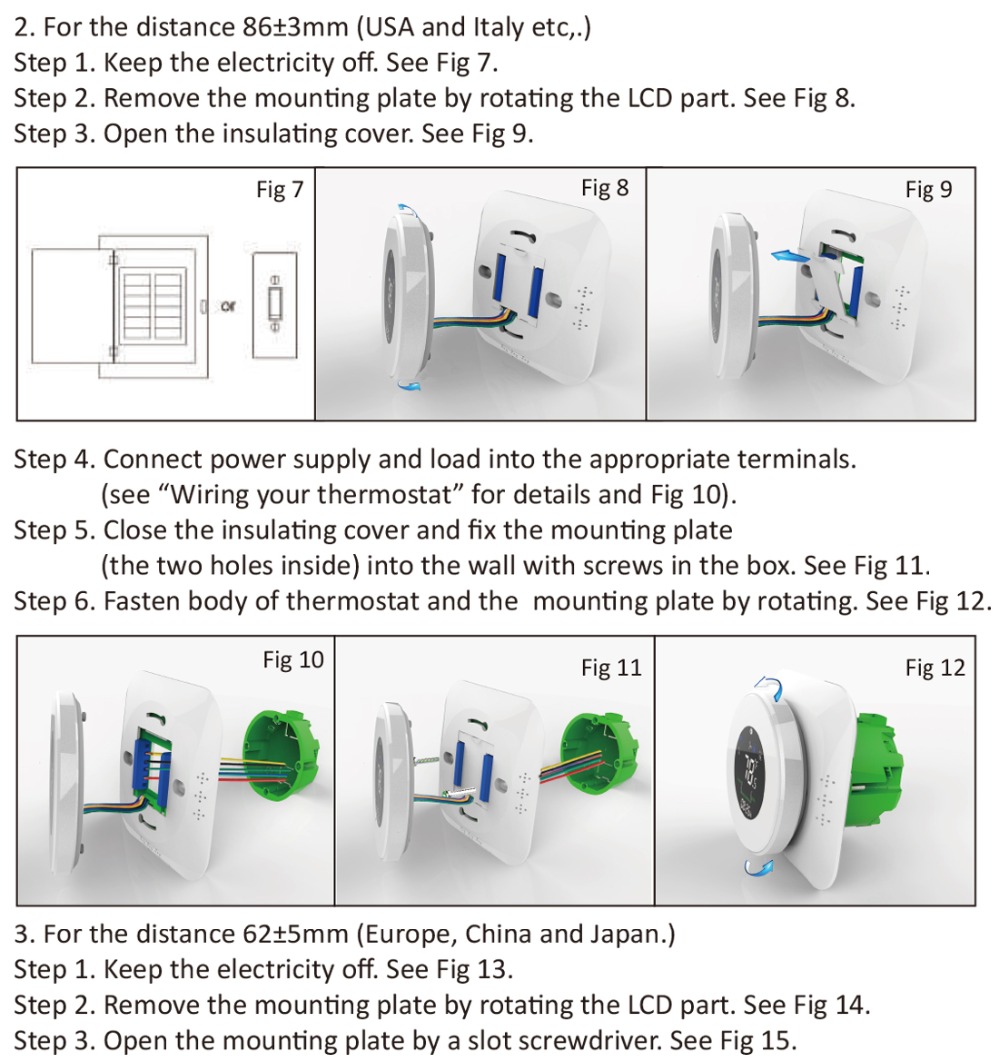

Hole Distance of 86±3mm(USA and Italy etc,)
|
