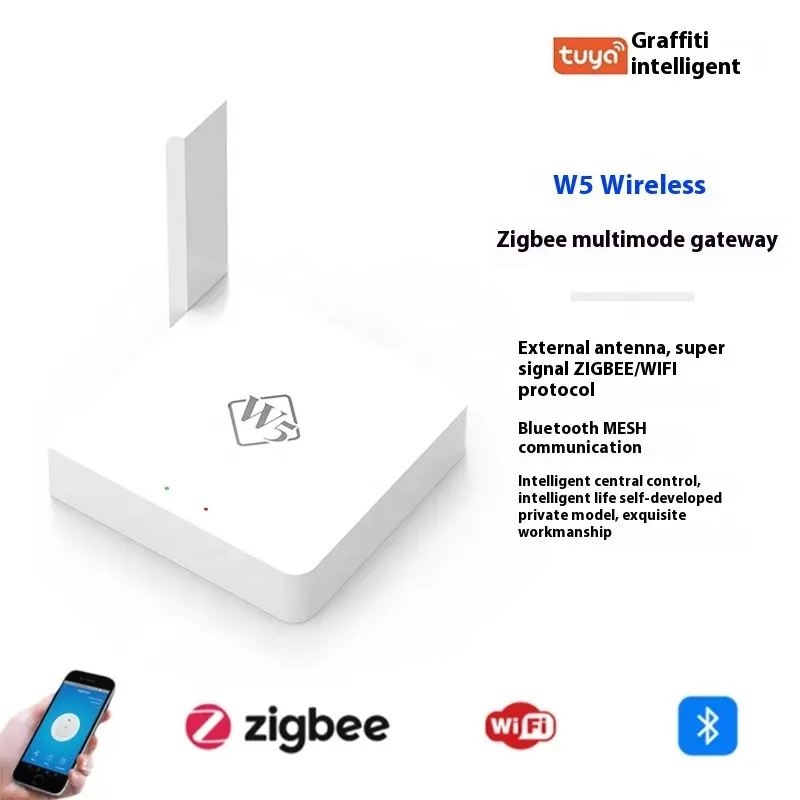

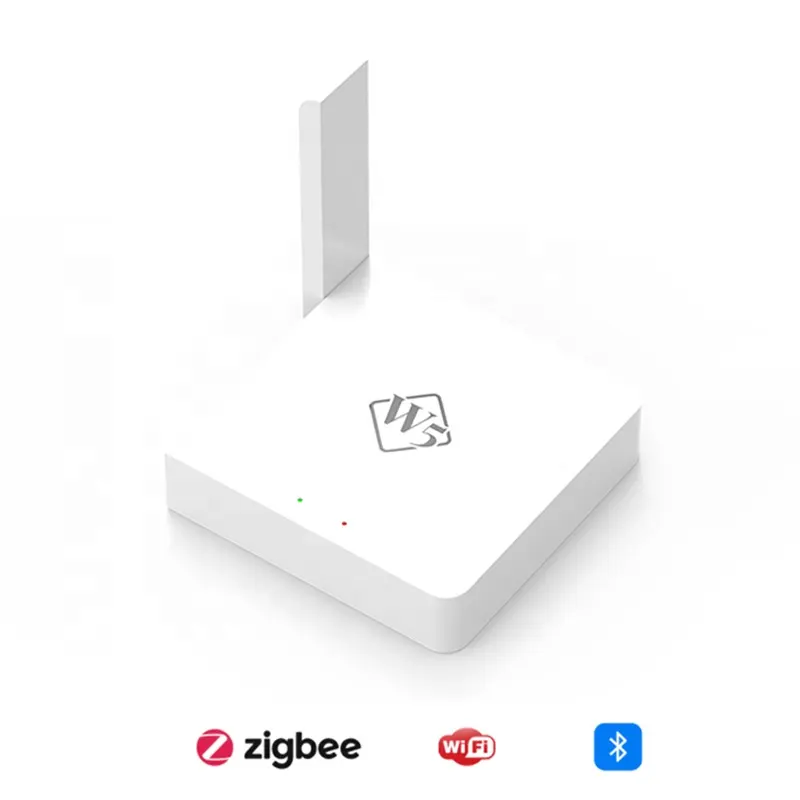

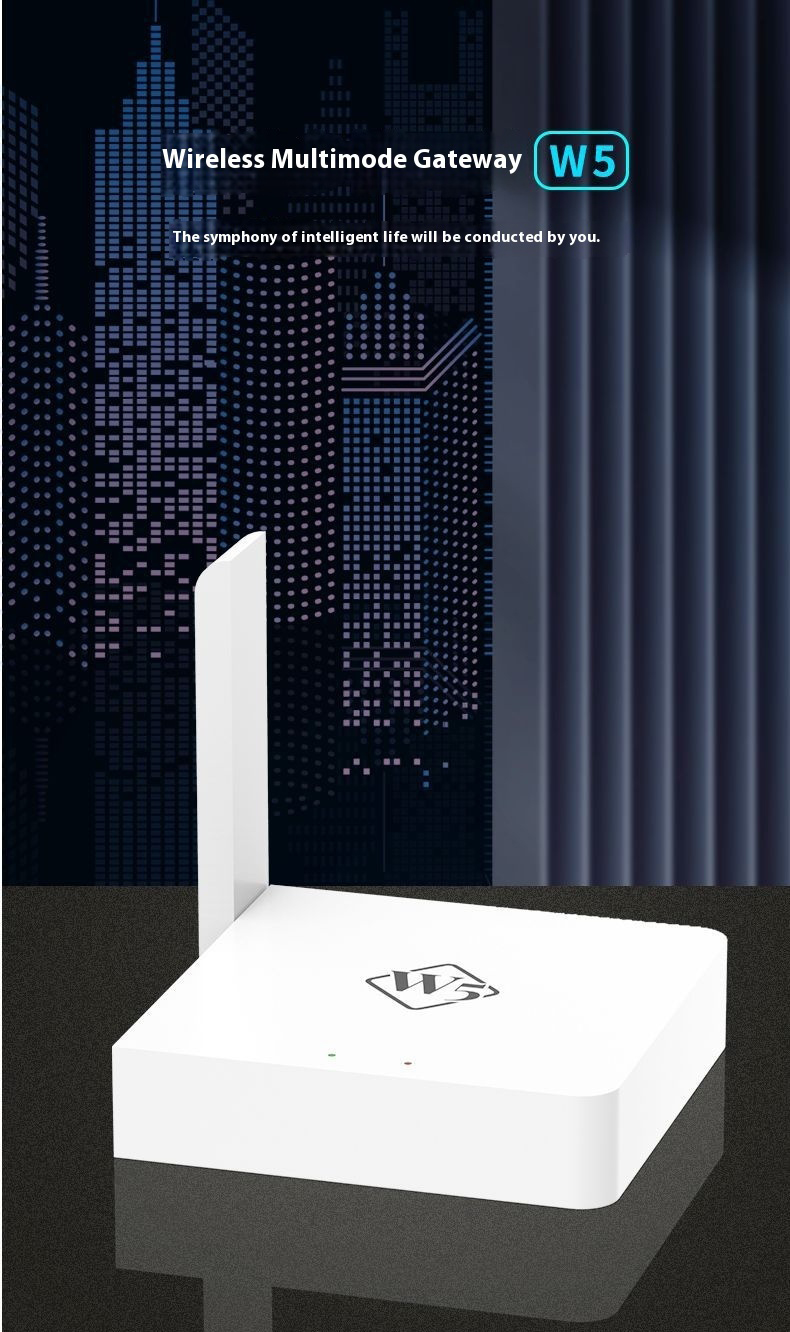

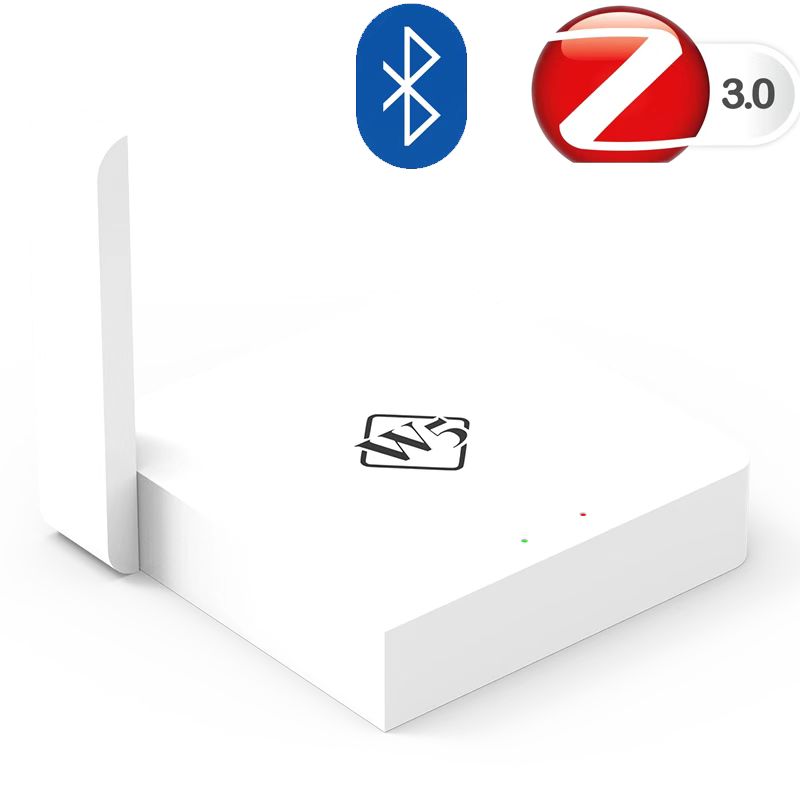

Tuya Zigbee 3.0 & BLE MESH Gateway w/ External Antenna – Hotel Smart Hub
Centralized hotel automation hub with Zigbee 3.0 and BLE MESH support, featuring an external antenna for extended coverage to control lights, sensors, and locks via the Tuya ecosystem
Get a QuoteTuya Zigbee 3.0 Wireless BLE MESH Multi Mode Gateway With External Antenna for Hotel
|
Name
|
Zigbee Wireless Gateway
|
|
Model
|
ON-W5
|
| APP Name |
Tuya Smart
|
|
Color
|
White
|
|
Material
|
PC+ABS
|
|
Power Supply
|
DC5V 1A
|
|
WiFi Standards
|
IEEE 802.11 b/n/g 2.4G Hz
|
|
Support Voice Control
|
Work with Amazon Alexa/Google Assistance
|
|
Zigbee protocol
|
Zigbee 3.0
|
|

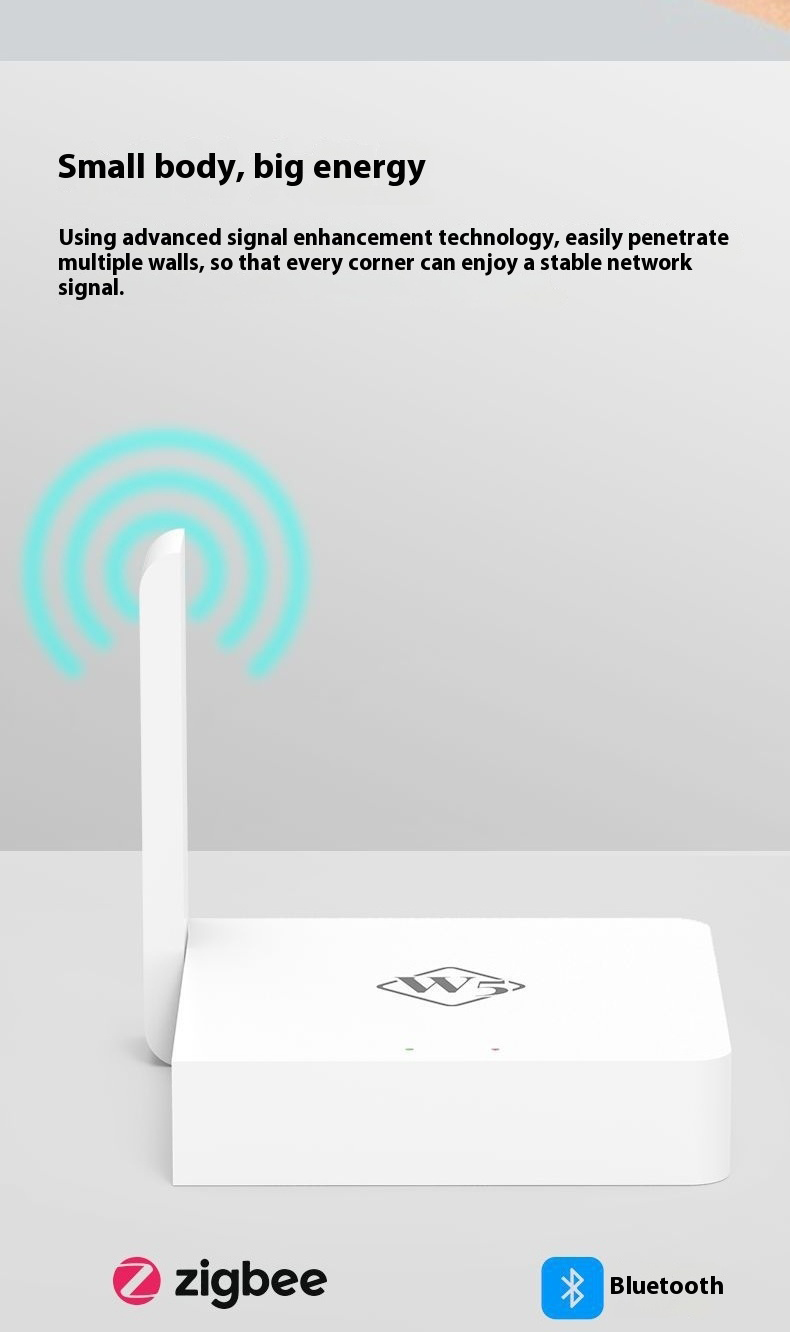

Wireless range
|
10~30m
|
|
Tuya Smart product Linkage control
|
Support
|
|
Operation Temp.
|
–10°C to +50°C
|
|
Humidity
|
5%–95% non-condensing
|
|
Installation
|
Desktop
|
|

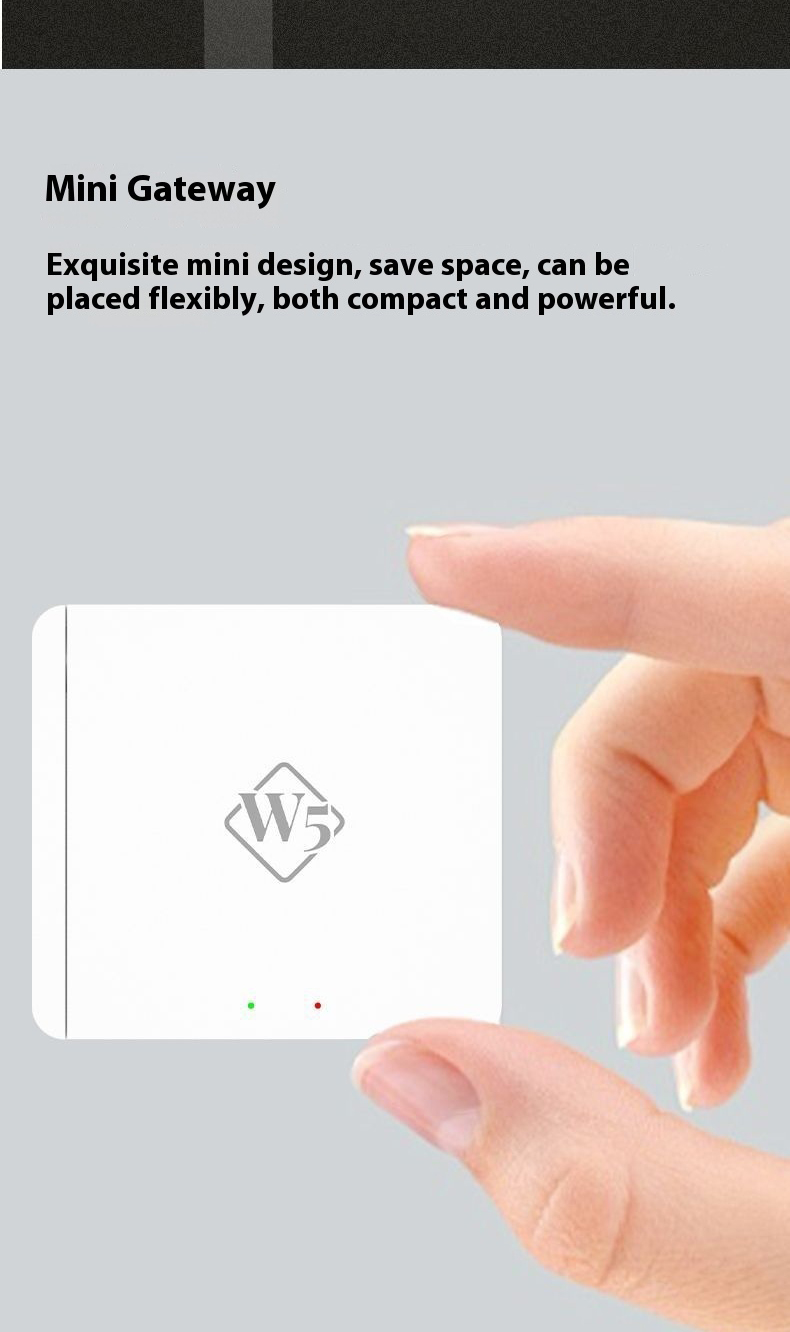

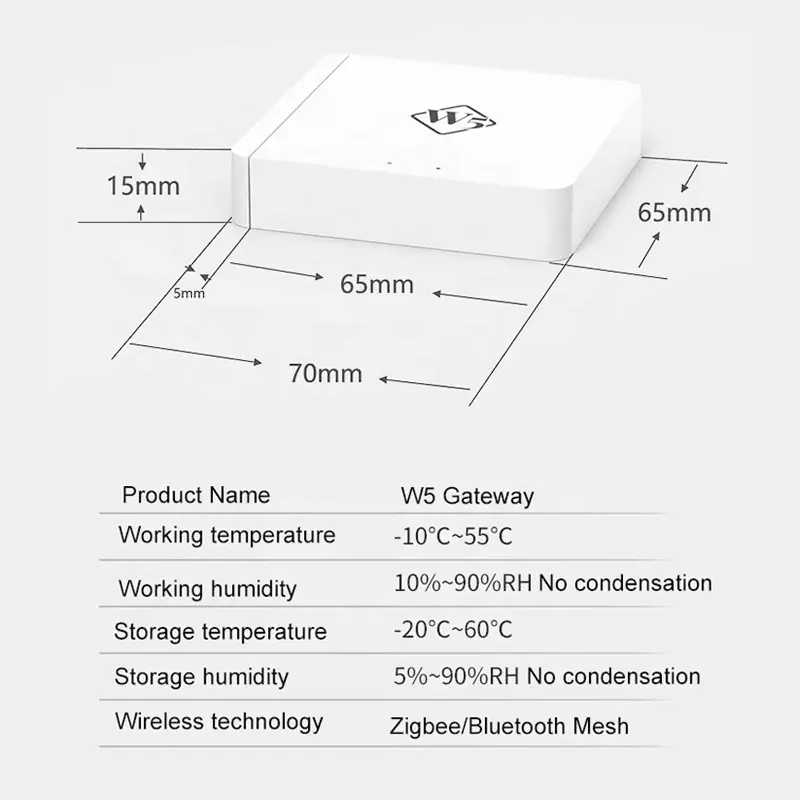

Dimension
|
60.5*60.5*11mm
|
|
Weight
|
50g
|
|
Package List
|
|
|
Zigbee Wireles Gateway
|
x1
|
|
Lan charging cable
|
x1
|
|
User Manual
|
x1
|
| Product Features: | |
| 1. Rated voltage: 5V 1A. | |

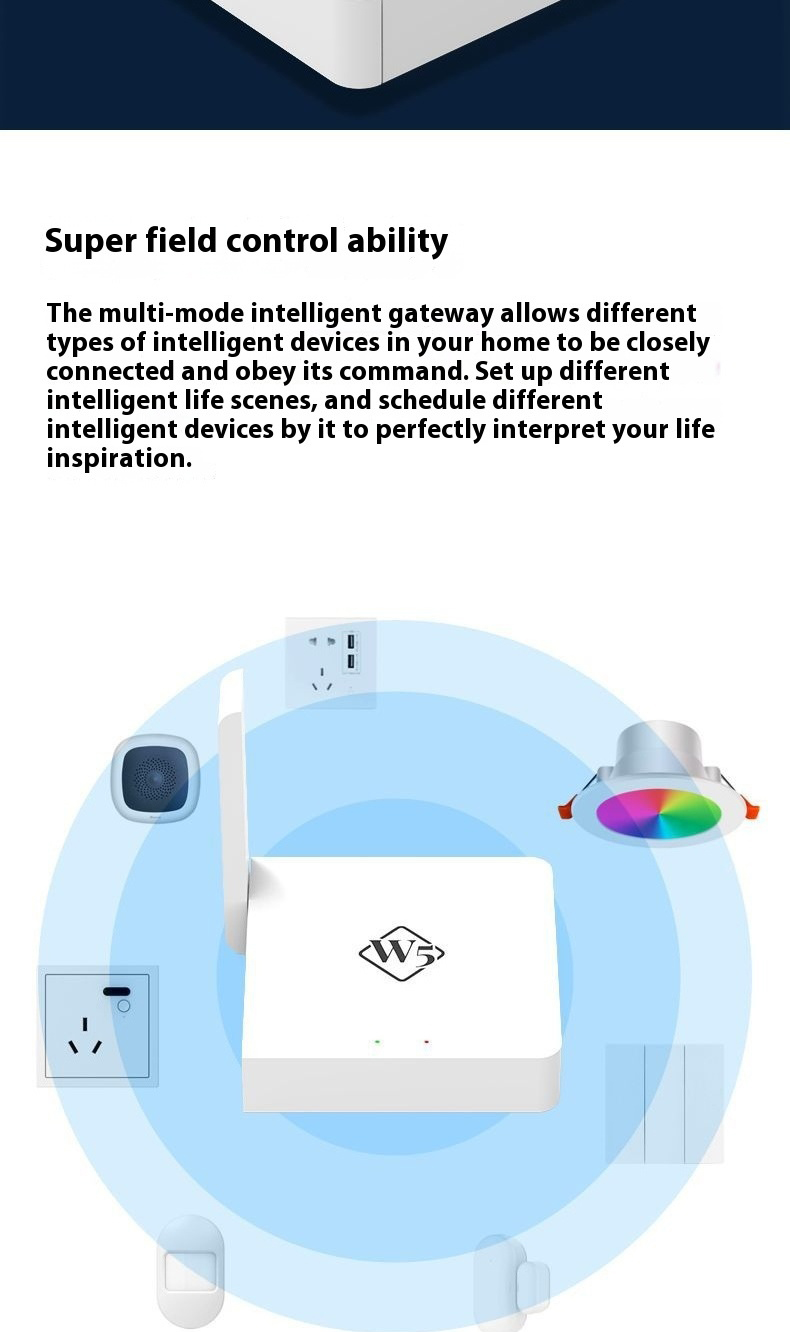

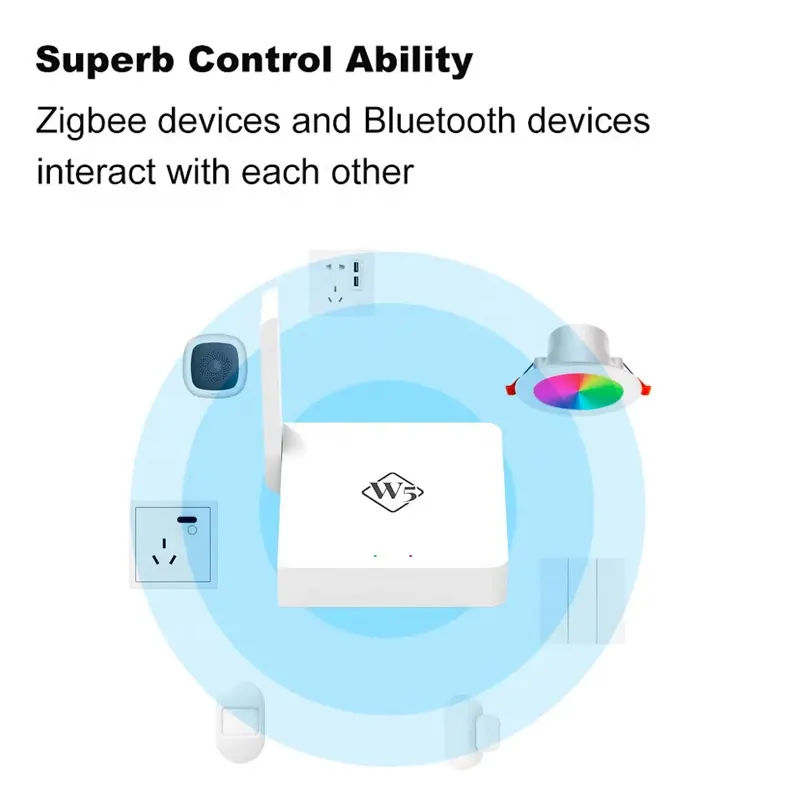

| 2. Function: Maximum Connection Count: Supports up to 128 Zigbee devices, 128 SigMesh devices, 64 Beacon devices, 64 Beacon Mesh devices, or real-time control of three single point devices. | |
| 3. One click network configuration: Short press the button on the gateway to enter the long network configuration mode (the indicator light will flash), lasting for 1 hour. At this point, if the sub device is in a distribution network state, it will be automatically added. And it supports adding multiple sub devices simultaneously. Press the button again to turn off the one click distribution mode. | |
| 4. OTA that supports universal docking of sub device graffiti modules and MCU firmware. | |
| 5. Support signal strength detection . |
